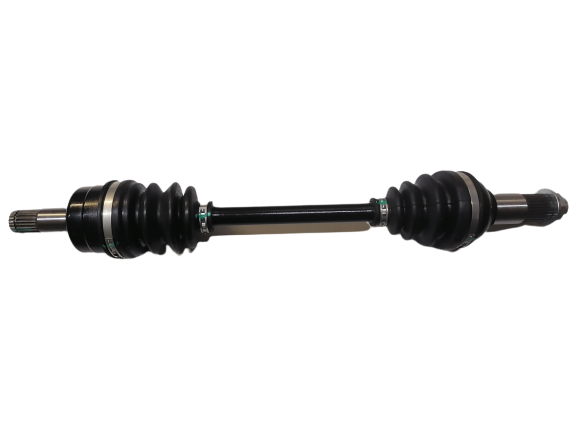

Complete front axle Yamaha Grizzly 550 700 2007-16 AB6-YA-8-300
Complete front axle Yamaha Grizzly 550 700 2007-16 AB6-YA-8-300
Regular price
€160,00 EUR
Regular price
€170,00 EUR
Sale price
€160,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Precision-grounded internal components
Designed to deliver excellent performance
Constructed from 4340 chrome-moly steel bars; engineered for exceptional off-road durability
Moly grease – high temperature/heavy load-carrying properties ensure maximum internal lubrication
Neoprene boots provide excellent protection against ozone, the main cause of shoe failure
Ride Pro RP2927
replaces OEM No.
cardan shaft - 3B4-2518E-00-00, 28P-2518E-00-00
inner CV joint -3B4-2510F-00-00, 28P-2510J-00-00
outboard CV joint -3B4-2510F-00-00, 28P-2510F-00-00
External CV Joint Outer Teeth, Wheel Side 27
Inner CV Joint Outer Teeth, Wheel Side 21
Total compressed length 509 mm
Adaptability:
| Grizzly 550 | 2009 | Left Front / Right Front |
| Grizzly 550 | 2010 | Left Front / Right Front |
| Grizzly 550 | 2011 | Left Front / Right Front |
| Grizzly 550 | 2012 | Left Front / Right Front |
| Grizzly 550 | 2013 | Left Front / Right Front |
| Grizzly 550 | 2014 | Left Front / Right Front |
| Grizzly 550 EPS | 2009 | Left Front / Right Front |
| Grizzly 550 EPS | 2010 | Left Front / Right Front |
| Grizzly 550 EPS | 2011 | Left Front / Right Front |
| Grizzly 550 EPS | 2012 | Left Front / Right Front |
| Grizzly 550 EPS | 2013 | Left Front / Right Front |
| Grizzly 550 EPS | 2014 | Left Front / Right Front |
| Grizzly 700 | 2007 | Left Front / Right Front |
| Grizzly 700 | 2008 | Left Front / Right Front |
| Grizzly 700 | 2009 | Left Front / Right Front |
| Grizzly 700 | 2010 | Left Front / Right Front |
| Grizzly 700 | 2011 | Left Front / Right Front |
| Grizzly 700 | 2012 | Left Front / Right Front |
| Grizzly 700 | 2013 | Left Front / Right Front |
| Grizzly 700 EPS | 2008 | Left Front / Right Front |
| Grizzly 700 EPS | 2009 | Left Front / Right Front |
| Grizzly 700 EPS | 2010 | Left Front / Right Front |
| Grizzly 700 EPS | 2011 | Left Front / Right Front |
| Grizzly 700 EPS | 2012 | Left Front / Right Front |
| Grizzly 700 EPS | 2013 | Left Front / Right Front |
| Kodiak 700 4WD | 2016 | Left Front / Right Front |
| Kodiak 700 4WD Hunter | 2016 | Left Front / Right Front |
| Kodiak 700 EPS 4WD | 2016 | Left Front / Right Front |
| Kodiak 700 EPS 4WD Hunter | 2016 | Left Front / Right Front |
| Kodiak 700 EPS 4WD SE | 2016 | Left Front / Right Front |
