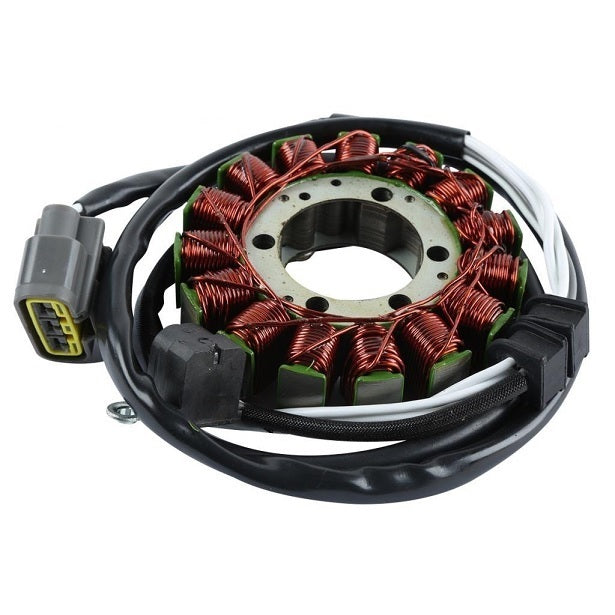

Stator Yamaha Grizzly 550 700 2008-20 RP1404

Brand new generator stator:
Direct replacement for the original device
Plug and play, direct application, easy installation.
Highest quality laminating materials
Top-class copper windings, resistant to up to 200 degrees Celsius.
The kit includes a pulsar coil
Connector included
Rubber gasket included
All products shipped are tested
One-year limited warranty
Dimensions:
Inner diameter: 45 mm
Outer diameter: 106 mm
Thickness: 27 mm
Wire length from stator to bushing: 100 mm
Cable length from gasket to plug: 550 mm, 1100 mm
Take-up reel cable length to bushing: 80 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Wire and cable resistance:
Alternator: white to each white = 0.4 ohm +/-20%
Alternator: White to ground = 0.L on screen
Pickup: white to gray = 500 ohms +/-20%
oem Yamaha 28P-81410-00-00, 3B4-81410-00-00 replacement na 28P-81410-01-00
Before installing a new stator
Check the stator AC output.
Replace any burnt or corroded stator and regulator/rectifier connections
Check and repair any melted wires.
Use high temperature dielectric grease on all connections
Our stator may use a different wire color code than your original.
All wires are installed in the correct order; do not change any wiring configurations.
This stator is designed as a direct replacement plug and should be used as such.
Always use a locking compound when screwing in the stator.
If our stator has a pickup coil, always make sure the air gap is correct when installing; we suggest as close as possible to at least 0.010".
